Custom Roofing Sheet Roll Forming Machine for Metal Roofing Panel Production

A roofing sheet roll forming machine is designed to produce metal roofing panels from galvanized steel, color-coated steel, galvalume steel or aluminum coils. It continuously forms flat steel coils into roofing sheets with accurate profiles, stable dimensions and smooth surface quality.

Unionindus provides customized roofing sheet roll forming machines for building material factories, steel structure projects, warehouse roofing suppliers and construction material manufacturers. Each production line can be designed according to your target profile drawing, material thickness, coil width, production speed and automation requirements.

What Is a Roofing Sheet Roll Forming Machine?

A roofing sheet roll forming machine is a continuous metal forming line used to manufacture roofing panels from steel coils. The coil is uncoiled, guided, leveled, roll formed, cut to length and collected as finished roofing sheets.

Compared with traditional bending or manual forming methods, roll forming is more suitable for continuous production because it offers higher efficiency, better profile consistency and lower labor dependence. For factories that supply roofing sheets in large quantities, a well-designed roll forming line can improve production stability and reduce material waste.

Unionindus roofing sheet roll forming machines are commonly used for producing:

Galvanized roofing sheets
PPGI roofing sheets
Galvalume roofing sheets
Corrugated steel sheets
Trapezoidal roof panels
Wall cladding panels
Customized building envelope profiles

Technical Specifications

The following parameters are for reference only. Final specifications depend on your profile, raw material and production requirement.

Item	Standard / Customizable Configuration
Product Name	Roofing Sheet Roll Forming Machine
Suitable Material	Galvanized steel, PPGI, galvalume steel, aluminum
Material Thickness	0.3-0.8 mm, customizable
Coil Width	According to profile drawing
Effective Width	According to profile drawing
Forming Speed	10-25 m/min, customizable
Forming Stations	Designed according to profile
Roller Material	45# steel with hard chrome plating or customized
Shaft Material	High-strength steel
Main Motor Power	According to machine design
Cutting Type	Hydraulic cutting or flying cutting
Control System	PLC control with touch screen
Driving System	Chain drive or gearbox drive
Machine Frame	Welded steel frame
Power Supply	Customized according to local voltage
Machine Color	Customizable
Warranty	According to contract terms

Machine Line Composition

A typical production line may include the following units. The final layout can be adjusted according to automation level and production requirement.

Machine Unit	Function
A standard roofing sheet roll forming line usually includes the following parts:	1 Set
Decoiler	1 Set
Feeding and Guiding Device	1 Set
Roll Forming System	1 Set
Hydraulic Cutting System	1 Set
PLC Control Cabinet	1 Set
Run-Out Table	1 Set

Optional Configurations

Optional systems can improve efficiency, safety, accuracy or labor savings. They should be selected based on real factory requirements.

Optional Part	Why It Matters
Hydraulic Decoiler	Suitable for heavier coils and easier loading
Pre-Cutting System	Cuts material before forming, useful for material change
Flying Cutting System	Improves production speed without stopping forming
Automatic Stacker	Reduces labor and improves finished sheet handling
Protective Cover	Improves operation safety
Gearbox Transmission	Suitable for heavy-duty or higher stability requirements
Remote Support Module	Supports online troubleshooting and technical support
Customized Voltage	Matches local industrial power supply

Key Machine Features

Core advantages of this production line

Customized Profile Design

Every roofing project may require different rib height, effective width, wave shape or panel appearance. Unionindus can design the roll forming machine according to your roofing sheet drawing or sample. Supported profile types include: Corrugated roofing sheet; Trapezoidal roofing sheet; IBR roofing sheet; Box profile roofing panel; Ribbed roof panel; Wall cladding panel; Customized metal roofing profile

Stable Roll Forming System

The forming section is the core of the production line. It determines profile accuracy, surface quality and long-term machine performance. The machine can be equipped with precision-processed rollers, strong machine frame and optimized forming stations to support stable production. Roller material, shaft diameter and forming station quantity are selected according to the profile design and material thickness.

PLC Automatic Control

The production line uses PLC control for automatic length setting, quantity setting and cutting control. Operators can input production data through the touch screen, reducing manual measurement errors and improving production efficiency. Typical control functions include: Sheet length setting; Production quantity setting; Automatic cutting; Production data display; Emergency stop; Manual and automatic operation modes

Accurate Hydraulic Cutting

The cutting system can be designed according to the roofing sheet profile. Hydraulic cutting is widely used for roofing sheet lines because it provides reliable cutting performance and is suitable for different panel shapes. Cutting options may include: Stop-to-cut hydraulic cutting; Post-cutting system; Pre-cutting system; Flying cutting system for higher production speed

Suitable for Multiple Raw Materials

The machine can process different metal coil materials depending on the project requirement. Common materials include: Material thickness and coil width should be confirmed before machine design. Galvanized steel coil; Pre-painted galvanized steel coil; Galvalume steel coil; Aluminum coil; Cold rolled steel coil

Application Scenarios

Typical use cases for this equipment

For Roofing Sheet Manufacturers

This machine helps building material factories produce roofing sheets in different lengths and profiles according to customer orders.

For Steel Structure Projects

Roofing sheet roll forming lines are widely used in steel structure building envelope systems, including factories, warehouses, workshops and logistics centers.

For Construction Material Suppliers

Distributors and manufacturers can use the machine to supply roofing panels, wall cladding panels and related building materials to local markets.

For Customized Profile Production

If your market requires a special roofing sheet profile, Unionindus can design the machine according to your drawing, sample or target sheet dimensions.

Why Choose Unionindus?

Project-Based Machine Design

We do not only provide standard machines. Each roofing sheet roll forming machine can be designed based on your profile drawing, raw material, target output and local operating conditions.

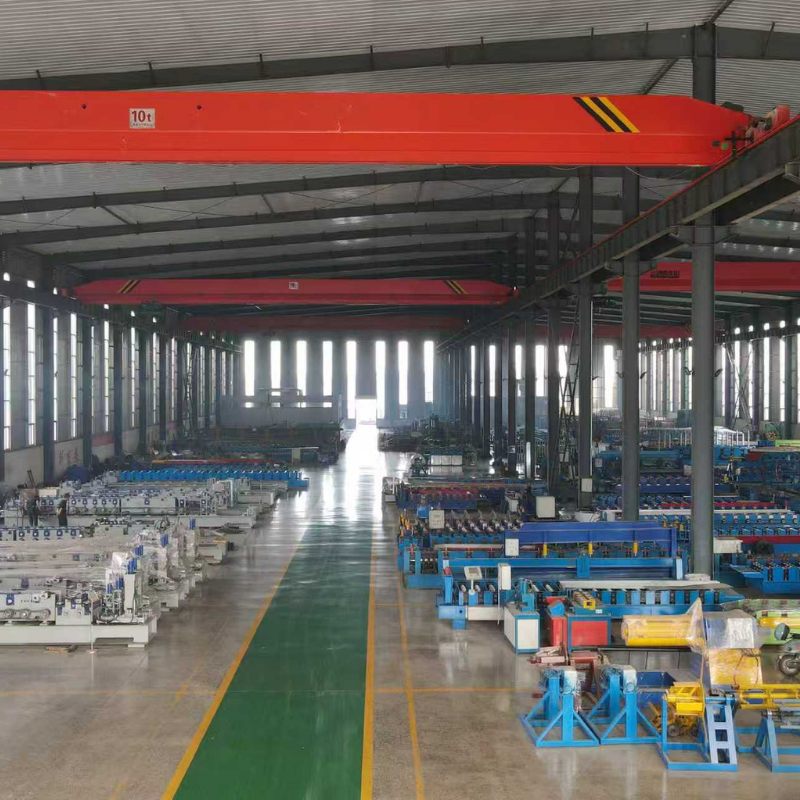

Strong Manufacturing Capability

From frame fabrication to roller processing, assembly, testing and packaging, the production process is controlled to ensure machine stability before delivery.

Profile Drawing Support

If you already have a roofing sheet sample or drawing, our technical team can help evaluate the forming feasibility and provide a suitable machine solution.

Factory Testing Before Shipment

Before delivery, the machine can be tested in the factory to check forming performance, cutting accuracy and control system operation.

Export-Oriented Service

Unionindus supports international customers with machine configuration, technical communication, packaging, shipping coordination and after-sales support.

How to Choose the Right Roofing Sheet Roll Forming Machine

1. Roofing Sheet Profile

The profile drawing is the most important information. It determines roller design, forming stations, cutting mould and final machine structure.

Required profile information:

Overall width
Effective width
Rib height
Wave distance
Sheet thickness
Profile shape
Finished sheet length

2. Raw Material

Different materials require different forming designs. Please confirm:

Material type
Yield strength
Thickness range
Coil width
Coil weight
Surface coating type

3. Production Capacity

If your factory needs high output, you may need higher forming speed, automatic stacker, hydraulic decoiler or flying cutting system.

4. Automation Level

A basic line may be suitable for small factories, while a fully automatic line is better for continuous production and lower labor cost.

5. Local Power Supply

The machine voltage, phase and frequency should match your local industrial power standard.

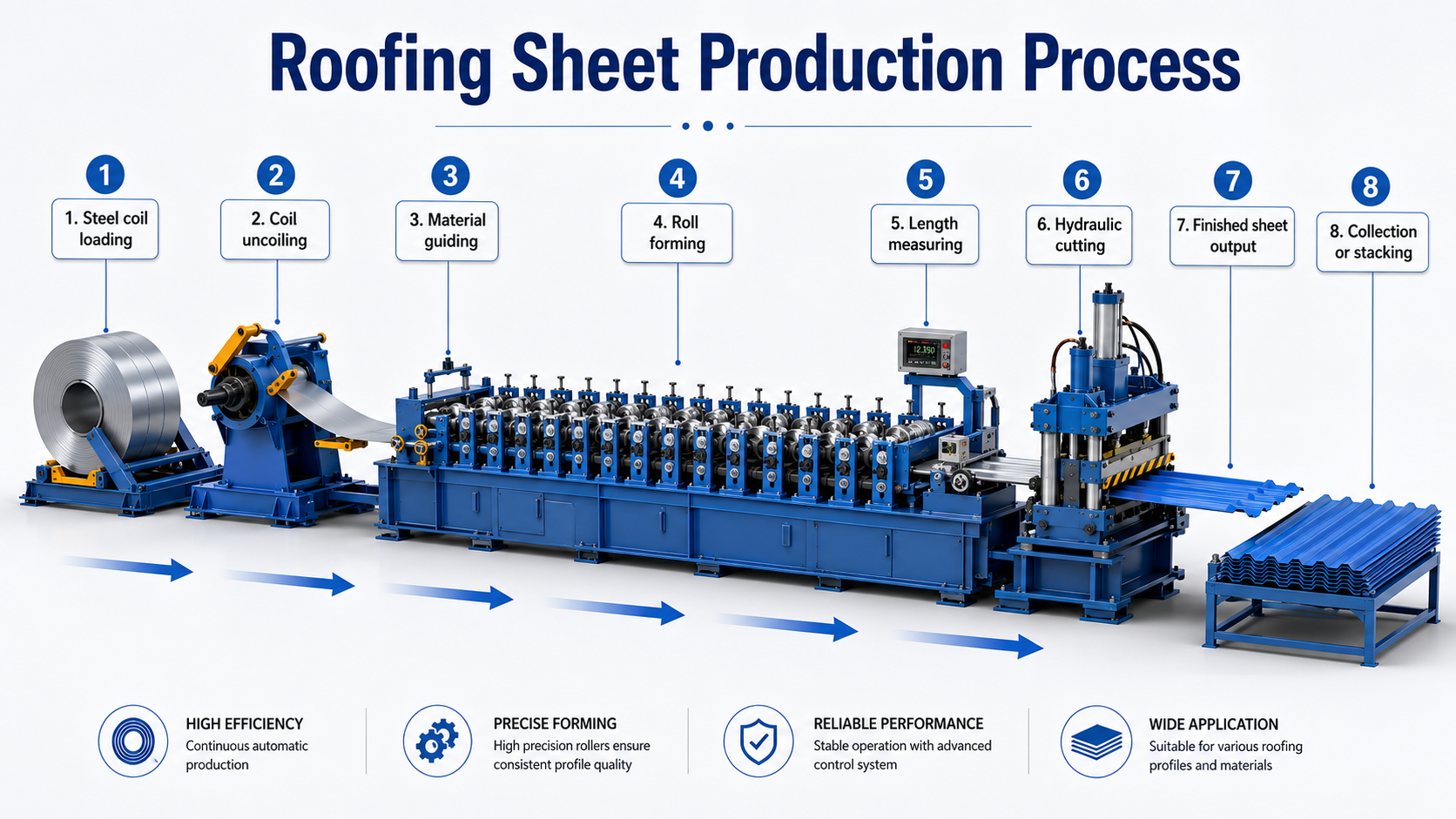

Production Process

The roofing sheet production process usually follows these steps:

Steel coil loading
Coil uncoiling
Material guiding
Roll forming
Length measuring
Hydraulic cutting
Finished sheet output
Collection or stacking

This continuous process helps manufacturers produce roofing sheets efficiently and consistently.

Quality Control

Unionindus focuses on key quality control points during manufacturing and testing:

Machine frame welding quality
Roller processing accuracy
Shaft alignment
Forming station adjustment
Cutting mould matching
PLC control function
Trial production result
Finished sheet profile accuracy
Packaging protection before shipment

The goal is to reduce installation problems and help customers start production more smoothly after machine arrival.

Packaging and Delivery

The roofing sheet roll forming machine is packed for international transportation. Main machine parts are usually protected with film, fixed by steel wire or wooden support, and loaded into containers according to machine size.

Packaging can be adjusted according to shipping method, destination country and customer requirements.

b287f9c9-052f-4beb-be5a-8c684581d77b — Roofing sheet roll forming machine packed for export delivery

After-Sales Support

Unionindus provides technical support for machine installation, operation and troubleshooting.

Support may include:

Installation guidance
Operation manual
Online technical support
Electrical diagram
PLC operation guidance
Spare parts support
Video communication for troubleshooting

For project requirements, on-site service can be discussed according to the contract and destination country.

Frequently Asked Questions

What materials can the roofing sheet roll forming machine process?+

The machine can process galvanized steel, pre-painted galvanized steel, galvalume steel, aluminum, and other suitable metal coils. The final design depends on material thickness, coil width and yield strength.

Can one machine produce different roofing sheet profiles?+

Usually, one machine is designed for one main profile. Some machines can be designed with interchangeable rollers or combined profiles, but this should be confirmed during technical design.

What information should I provide before the quotation?+

Please provide the roofing sheet profile drawing, material thickness, coil width, target production speed, voltage requirement, and automation preference.

Can the machine be customized for my local market profile?+

Yes. Unionindus can design the machine according to your local roofing sheet profile, sample, or technical drawing.

What is the production speed of the machine?+

Standard production speed is commonly designed according to the profile and cutting method. Higher speed can be achieved with a suitable machine configuration and flying cutting system.

How long does it take to install the machine?+

Installation time depends on machine configuration, workshop preparation and operator experience. A basic roofing sheet line is usually easier to install than a fully automatic line with a stacker and auxiliary systems.

Do you test the machine before shipment?+

Yes. The machine can be tested before shipment to check forming performance, cutting accuracy, and control system operation.
